Description
The Panorama LPW-868-[X] antenna range is designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install.
Product

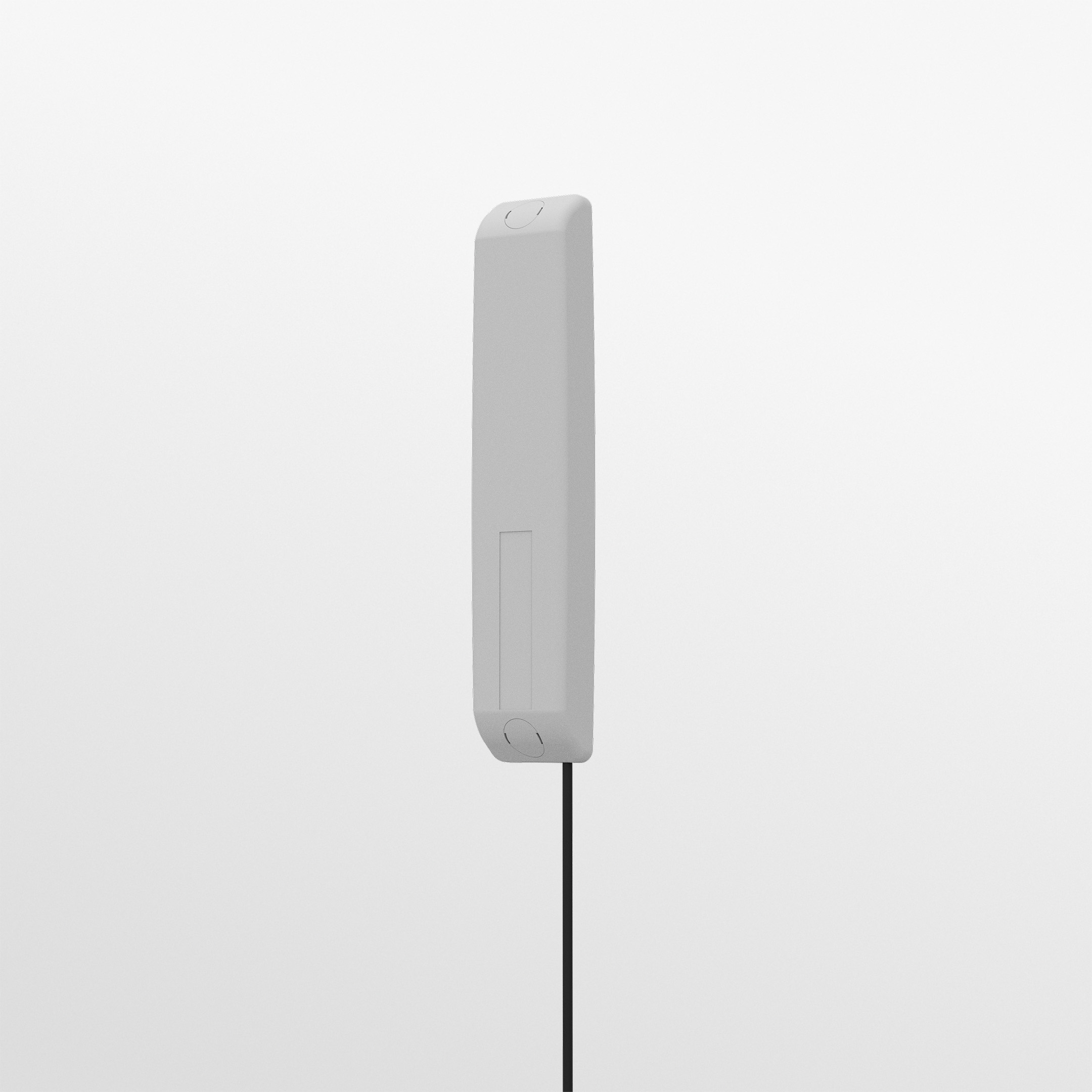

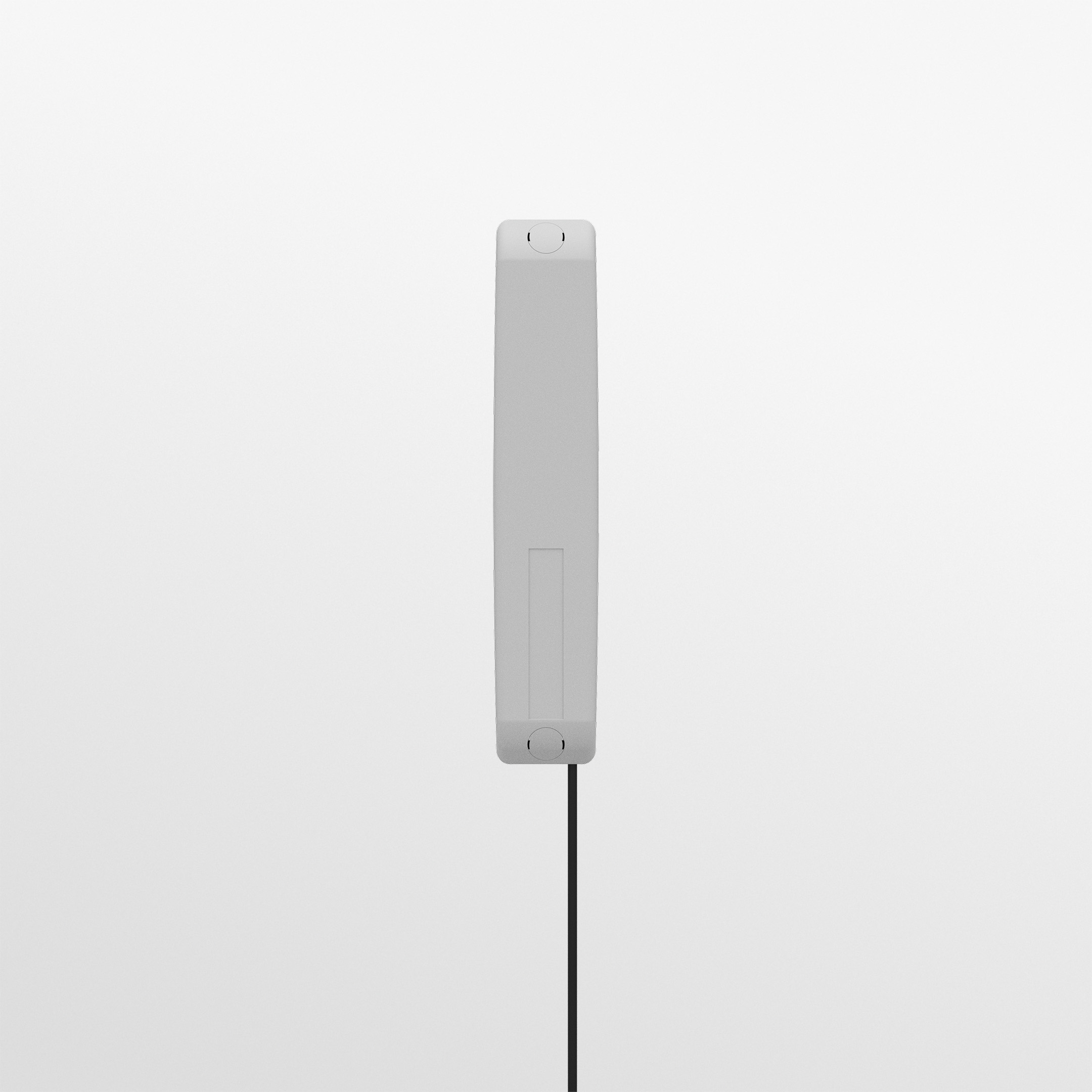

LPW-868 | Low Profile Wall Mount 868-915MHz
Model / SKU: LPW-868-[X]
LPW-868 | Low Profile Wall Mount 868-915MHz
The Panorama LPW-868-[X]SP antenna range is designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install.
The antenna offers ground-plane independent omni-directional performance across 863 – 928MHz encompassing the 868 and 915MHz bands. The efficient element design ensures a high first time connection rate and an ongoing, robust communications link.

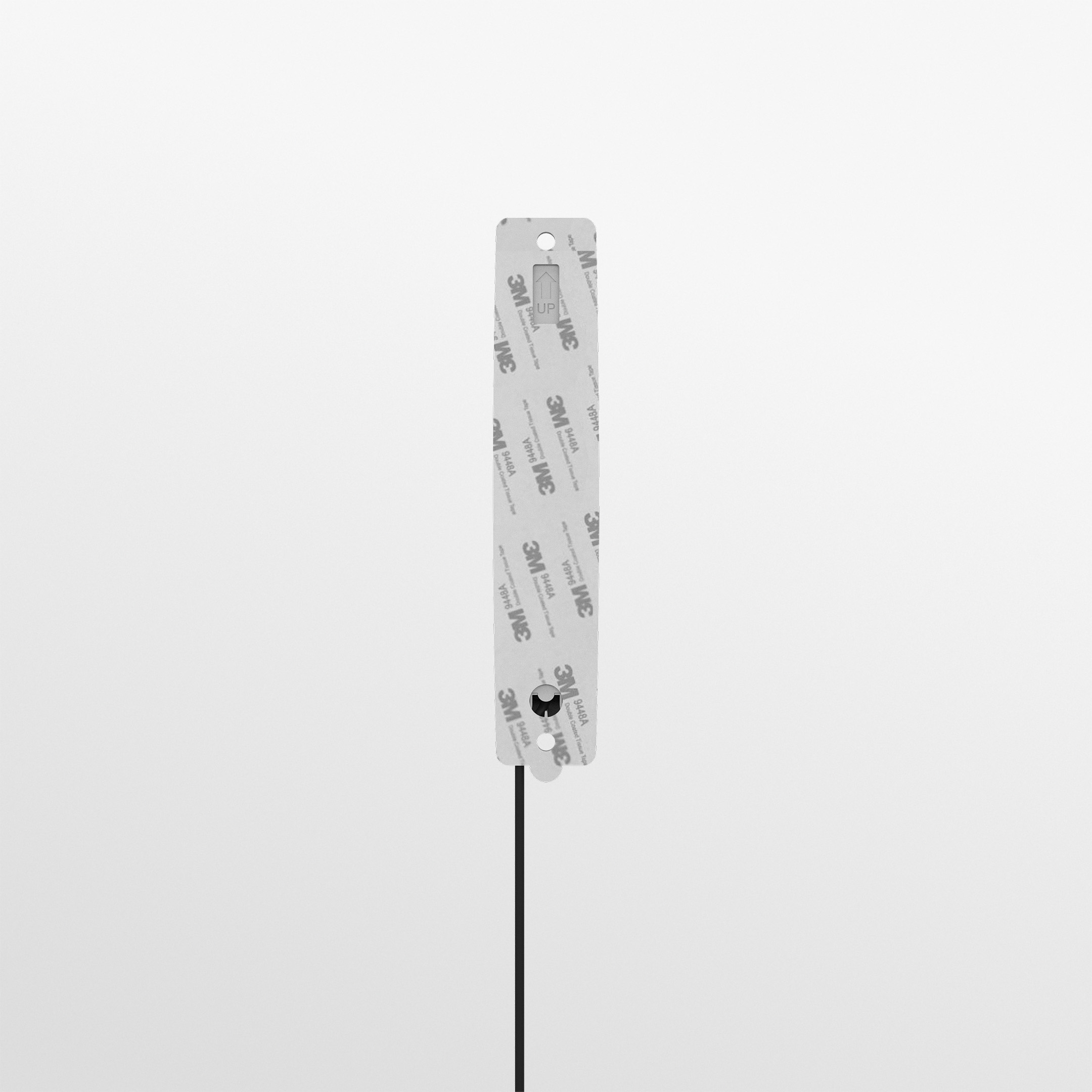

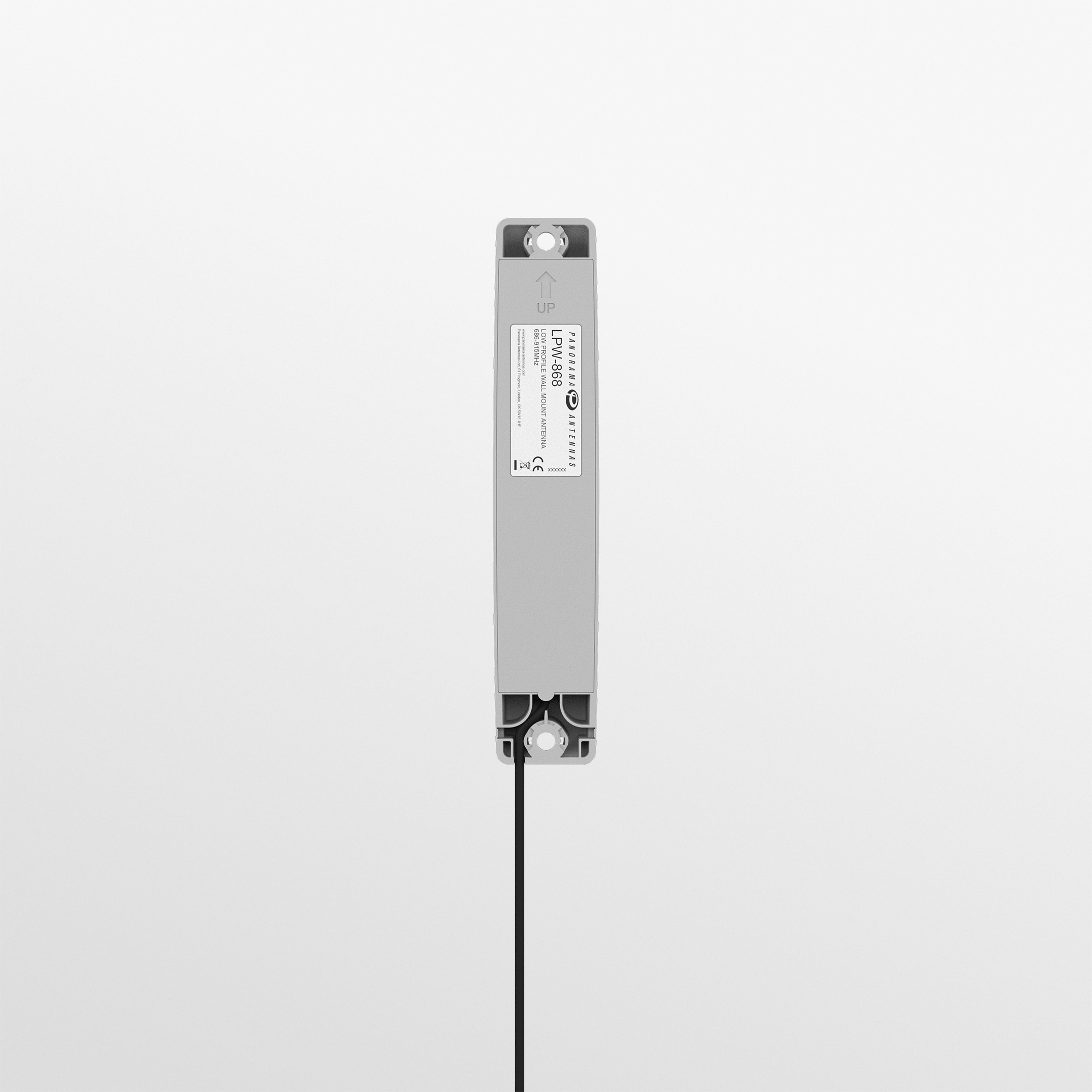

The antenna can be installed using the supplied industrial grade adhesive pad or via the integrated screw mounting bosses. Performance may change based on mounting surface.
Product overview
The Panorama LPW-868-[X]SP antenna range is designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install.
The antenna offers ground-plane independent omni-directional performance across 863 – 928MHz encompassing the 868 and 915MHz bands. The efficient element design ensures a high first time connection rate and an ongoing, robust communications link.
The antenna can be installed using the supplied industrial grade adhesive pad or via the integrated screw mounting bosses. Performance may change based on mounting surface.
Product Features
- Low profile wall mount antenna Covers 868 and 915MHz Compact and discrete housing design
Benefits
- Several different mounting methods Ideal smart metering antenna Covers 868 and 915MHz bands
Application
- Smart Metering M2M & IOT Applications LoRa and Sigfox
Additional information
| Colour | Grey |
|---|---|
| Connector (VHF/UHF) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 863 – 928MHz | 2dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Length | 165 (mm) | 6.50 (in) |
| Width | 32 (mm) | 1.26 (in) |
| Height | 19.6 (mm) | 0.77 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Wall |
| Mounting Methods | Wall |
| APPROVALS DATA | |
| IP Rating | IP65 |
| TECHNOLOGY DATA | |
| Technology | 169MHz; 868-923MHz |
